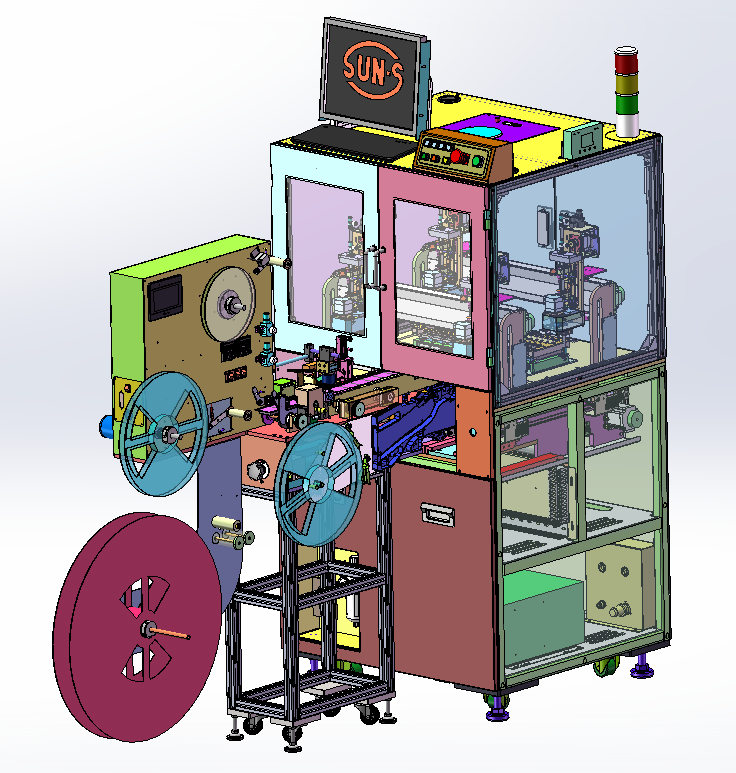

Device characteristics
■ Equipped with 2 newly developed universal programmer, the speed is 40% faster than the original equipment.
■ Equipped with two universal with 8 universal sockets, reasonable interactive operation between each other realizes the high-speed production efficiency.
■ The writer can be directly connected via LAN for easy wiring. The original program can be downloaded at high speed through the network port.
■The standard camera is equipped with a camera, which can be used for various data center coordinate registration while realizing image correction in the automatic production process.
Through this function, the cumbersome slot coordinate positioning can not only be completed with one key, but the chip misalignment caused by the tray reset can also be automatically corrected during operation.
■Optional down-illuminated camera, can more conveniently realize the automatic compensation of socket coordinates, automatic registration of Tray disk coordinates, IC/module QR code reading and other advanced functions.
■ Model conversion can be easily completed without any special tools.
■ Equipped with a large-size LCD touch screen, MES correspondence, superior production log management and other unique functions of the PH series.
■ Compact and reasonable design, single tray Tray manual loading and unloading, suitable for small batch, multi-variety production and experimental development.
Optional large capacity to realize mass production in small space.
■ Optional AutoTray, Tape In/Tape Out, Tube In/Tube Out, which can flexibly correspond to the production of different packaging materials (due to space constraints, packaging cannot be transferred).
■ Flexible corresponding to various flat chips (TSOP, CSP, QFP, TQFP, μBGA, etc.).
■ XYZθ4-axis high-precision stepping hybrid control realizes high-speed, high-precision and stable product handling.
■ PPZ adopts single-head design, which is easy to use and stable in performance.
Program Universal
Universal: A8000 (Acroview) 2
Corresponding chip: Flash memory chip, monolithic internal memory memory
Programming sequence: data erasure (Erase), blank check (Blank), program writing (Program),
Verity can be reprogrammed according to different requirements
External interface: LAN
processor
Corresponding types: TSOP, BGA, QFP, TQFP, SOP and other chip packages
Corresponding slot: dedicated for open top slot
Processing capacity: MAX 900
(For 2 sets*8 ports, the IC does not affect UPH within 32S of programming time)
Chip transportation: 4-axis 4-head high-speed P&P servo stepping motor hybrid drive
X-Y minimum resolution: 0.004 mm
Reset accuracy: ±0.02 mm
Minimum resolution of θ axis: 0.18°
Fully automatic coordinate login: optional
Pallet loader: corresponding to pallet JEDEC, EIAJ
(Optional AutoTray)
Mark printing: Standard installation: Printers for pigment inks sold on the market
Optional equipment: semiconductor-specific ink printer that is not easy to fade
Dot mark, text mark possible
Operating system: FA PC OS: Windows 10
Input device: LCD touch screen, keyboard, code reader (optional)
Support network: Ethernet
Model conversion time: 10 minutes or less (but not including ROM data transfer time)
Use air: 0.4Mpa-0.5Mpa 50 l/min
Power supply: 100-220V AC 50/60Hz 15A about 1000VA
Device size and weight: (D) 710, (W)755, (H)1410 (mm) about 200Kg
