The TMS320F280230PTT microcontroller powers the C28x™ core coupled with highly integrated control peripherals in a low pin count device. The code of TMS320F280230PTT is compatible with previous C28x-based codes and provides a high level of analog integration.

An internal voltage regulator allows operation from a single supply rail, an analog comparator with an internal 10-bit reference is added and can be routed directly to control the PWM output, and the ADC operates over a fixed full-scale range of 0 V to 3.3 V conversion operation, and supports ratiometric VREFHI/VREFLO references, and the ADC interface is optimized for low overhead/low latency.

Main features:

• Highlights

– Efficient 32-bit central processing unit (CPU) (TMS320C28x)

– 50-MHz and 40-MHz devices

– 3.3-V single supply

– Integrated power-on reset and brown-out reset

– Two internal zero-pin oscillators

– Up to 22 dual-purpose general-purpose input and output (GPIO) pins

– Three 32-bit CPU timers

– On-chip Flash, SRAM, OTP memory

– Code Security Module

– Serial port peripherals (SCI/SPI/I2C)

– Enhanced Control Peripherals

- Up to 3 Enhanced Pulse Width Modulator (ePWM) modules supporting up to 6 channels

- Enhanced Capture (eCAP)

- Analog-to-digital converters (ADCs)

- On-chip temperature sensor

- Up to 2 comparators (280270 only)

– 38-pin and 48-pin packages

• Efficient 32-bit central processing unit (CPU) (TMS320C28x)

– 50MHz (20-ns cycle time)

– 40MHz (25-ns cycle time)

– 16x16 and 32x32 Media Access Control (MAC) operations

– 16x16 dual channel MAC

– Harvard bus architecture

– Linked operation

– Fast interrupt response and handling

– Unified memory programming model

– Efficient code (using C/C++ and assembly language)

• Endianness: little endian

• Low device and system cost

– 3.3-V single supply

– No power sequencing required

– Integrated power-on and brown-out reset

– Available in small packages as low as 38-pin

– low power

– No analog support pins

• timing

– Two internal zero-pin oscillators

– Monolithic crystal oscillator/external clock input

– Support dynamic PLL ratio change

– Watchdog timer module

– Missing clock detection circuit

• Up to 22 individually programmable multiplexed GPIO pins with input filtering

• Peripheral Interrupt Extension (PIE) module that supports all peripheral interrupts

• Three 32-bit CPU timers

• Independent 16-bit timers in each ePWM module

• On-chip memory

– Flash, SRAM, OTP, Boot ROM available

• 128-bit security key/lock

– Used to protect secure memory blocks

– Protects firmware from reverse engineering

• Serial port peripherals

– One SCI(UART) module

– an SPI module

– An Inter-Integrated Circuit (I2C) bus

• Advanced emulation features

– Analysis and breakpoint functions

– Real-time debugging with hardware

• Packaging

– 38-pin DA Thin Small Outline Package (TSSOP)

– 48-Pin PT Low Profile Quad Flat Pack (LQFP)

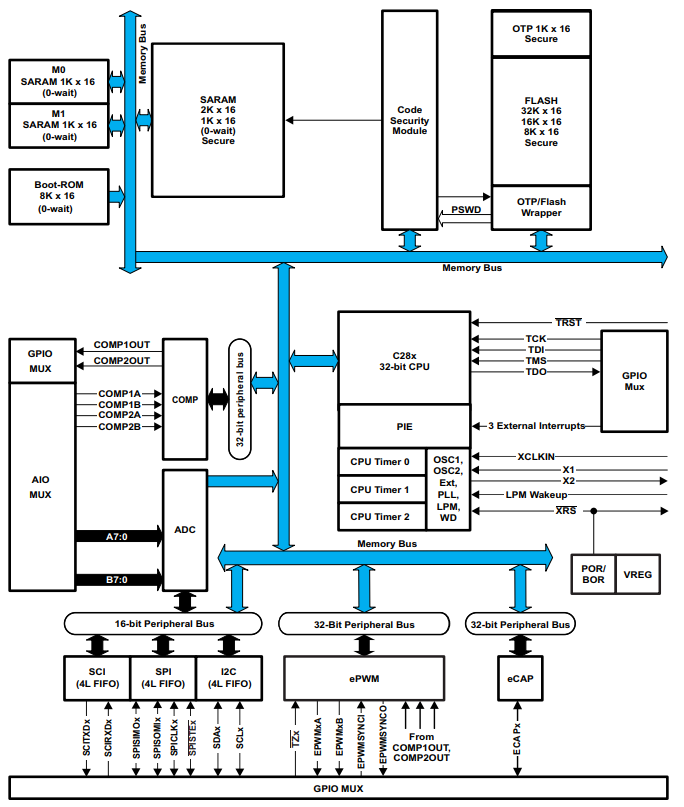

Functional Block Diagram

The AP8000 multi-purpose IC programmer independently developed by Acroview Technology includes three main parts: the host, the base plate, and the adapter seat.

The host supports USB and NET connections, allowing multiple programmers to be networked to achieve the purpose of simultaneously controlling multiple programmers to programmer at the same time. The built-in chip safety protection circuit ensures that even if the chip is reversed or a short circuit caused by other reasons can be detected immediately and the power will be cut off to ensure the safety of the chip and programmer. Embedded high-speed FPGA greatly accelerates data transmission and processing. There is an SD card slot on the back of the main unit. Put the project file produced by the PC software into the root directory of the SD card and insert it into the card slot. The project file can be selected, loaded, and programmed through the buttons on the programmer. command, in order to achieve the purpose of operating without PC, which greatly reduces the cost of PC hardware configuration, and can be conveniently and quickly matched with the working environment.

AP8000 makes the mainframe more expandable by adding an adapter board to the backplane. Currently, it supports devices produced by all mainstream semiconductor manufacturers, including TI, ST, MicroChip, Atmel, Hynix, Macronix, Micron, Samsung, Toshiba, etc. Supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and support file formats including Intel Hex, Motorola S, Binary, POF, etc.
