Characteristic:

• 16-bit flash memory

– 512 unified sectors, each sector has 4K bytes

– 32 uniform blocks, each block or

– 64 uniform blocks of 32K bytes each

– 256 bytes per programmable page

• Wide operating range

– 2.5V~3.6V single voltage power supply

– Industrial temperature range

• serial interface

– Standard SPI: CLK, CS, DI, DO, WP

– Dual SPI: CLK, CS#, DQ0, DQ1, WP#

– Four SPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3

– QPI: CLK, CS#, DQ0, DQ1, DQ2, DQ3

– Continuous read mode support

– Program/erase suspend and resume support

– Allows true XIP (execute-in-place) operations

• high performance

– Maximum fast read clock frequency: 100MHz

– Maximum read clock frequency: 66MHz

– Typical page program time: 0.6ms

– Typical sector erase time: 70ms

– Typical block erase time: 300ms

– Typical chip erase time: 7 seconds

• Safety

– Software and hardware write protection

– Lockable 4X256 byte OTP security page

– 64-bit unique ID for each device

– Discoverable parameters (SFDP) register

• High reliability

– Endurance: 100,000 program/erase cycles

– Data retention period: 20 years

• Green packaging

– 8-pin SOP (150mil)

– 8-pin SOP (208mil)

– 8 pads TDFN (2×3mm)

– 8 pads USON (4x3mm)

– All packaging is RoHS Compliant and Halogen Free

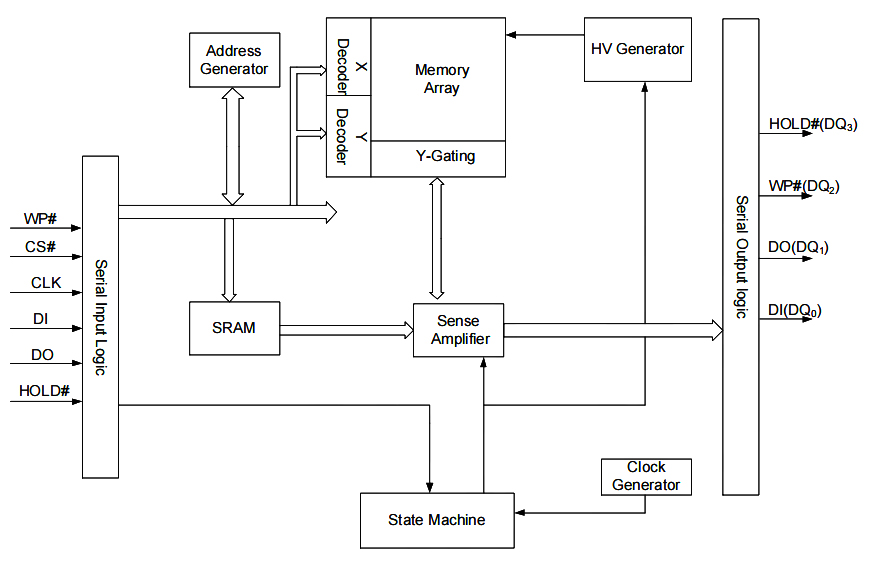

Functional block diagram

The AP8000 universal programmer independently developed by Acroview Technology includes three parts: the host, the base plate, and the adapter seat.

The host supports USB and NET connections, allowing multiple chip programmer to be networked to achieve the purpose of simultaneously controlling multiple programmers to burn at the same time. The built-in chip safety protection circuit ensures that even if the chip is reversed or a short circuit caused by other reasons can be detected immediately and the power will be cut off to ensure the safety of the chip and programmer. Embedded high-speed FPGA greatly accelerates data transmission and processing. There is an SD card slot on the back of the main unit. Put the project file produced by the PC software into the root directory of the SD card and insert it into the card slot. The project file can be selected, loaded, and burned through the buttons on the programmer. command, in order to achieve the purpose of operating without PC, which greatly reduces the cost of PC hardware configuration, and can be conveniently and quickly matched with the working environment.

AP8000 makes the mainframe more expandable by adding an adapter board to the backplane. Currently, it supports devices produced by all mainstream semiconductor manufacturers, including TI, ST, MicroChip, Atmel, Hynix, Macronix, Micron, Samsung, Toshiba, etc. Supported device types include NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and support file formats including Intel Hex, Motorola S, Binary, POF, etc.
