UFS Programmer

Summary:Single site UFS programming solution.
Supports UFS specification versions: V2.0, V2.1 and V3.0
High speed Gear 1 Rate A ~ HS-Gear 3 Rate B.
UFS Descriptors, Attributes, Flags configuration.
UFS Logical Units read, write and format operation.
Support UFS Wipe operation.
UFS device part number and capacity identification.
Comply with USB 3.2 Gen 1 specification
Strong System General UFS Image Builder software to convert the customize Image File.
Provides Real-time statistics displays and session log report
High Speed performance up to Read: 428 MB/s and Write: 254MB/s

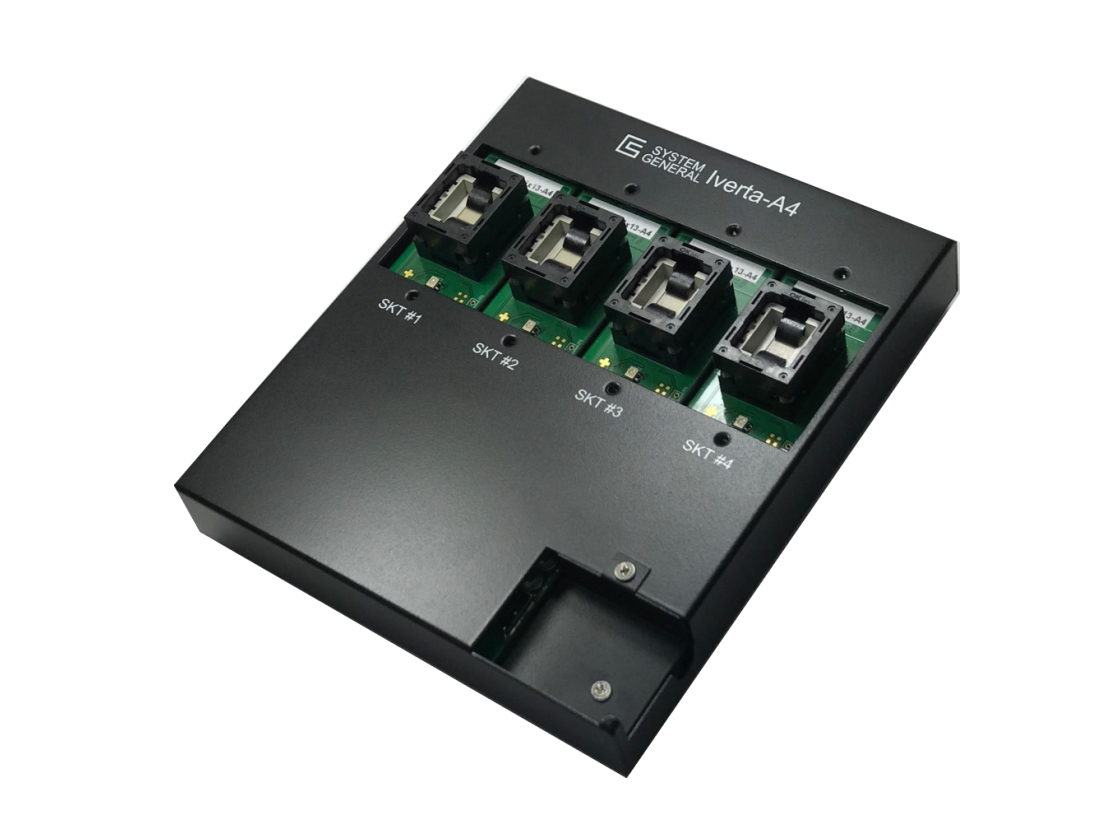

Compatible software task to Iveta-A4 gang socket platform

Other:

UFS PROGRAMMER

UFS PROGRAMMER

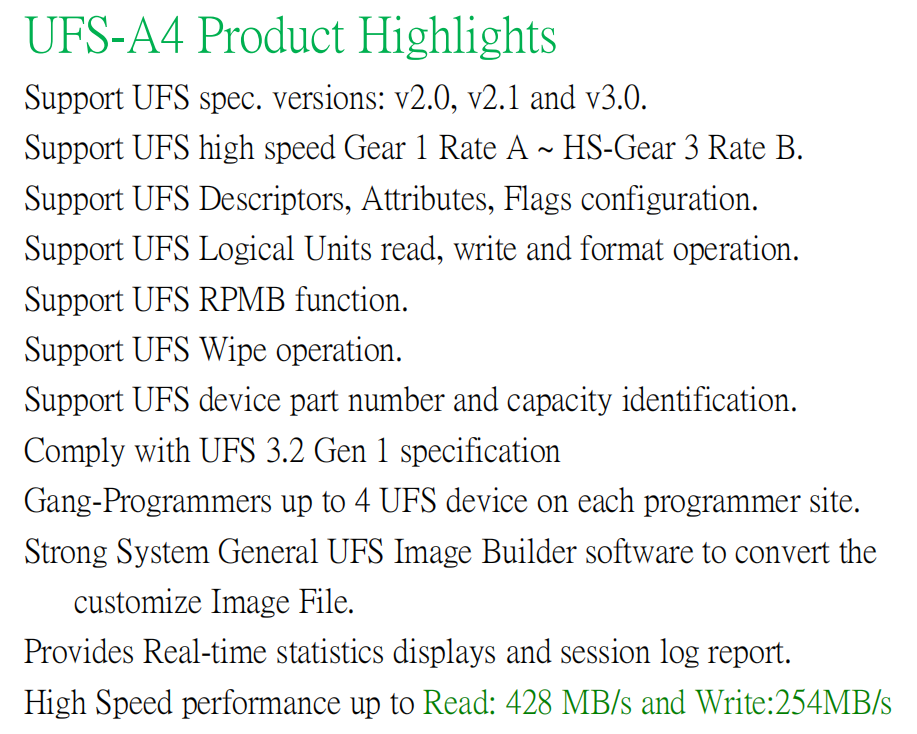

■ Supports UFS specification versions: V2.0, V2.1 and V3.0

■ Supports UFS high speed Gear 1 Rate A ~ HS-Gear 3 Rate B

■ Supports UFS Descriptors, Attributes, Flags configuration

■ Supports UFS Logical Units read, write and format operations

■ Supports UFS Wipe operation

■ Supports UFS device part number and capacity identification

■ Complies with the UFS 3.2 Gen 1 specification

■ The mass-production adapter supports 4 UFS devices for asynchronous programming

■ The powerful and universal UFS Image Builder software configures partitions

■ Provides real-time statistical information display and session log reports

■ The programming performance is as high as Read: 428MB/s and Write: 254MB/s

Ultra-high-speed read and write speeds

The write speed reaches 254MB/S

The verify speed reaches 428MB/S

UFS PROGRAMMER

UFS Manual Fixture

● Manually open and close the UFS programming socket, which is light and labor-saving

● Boost production efficiency.

● The programming socket bears even force, extending its service life

UFS PROGRAMMER

Supports multiple PSA functions to ensure data reliability

● Avoids data retention issues of 3D flash after reflow soldering

● Automatically or manually refreshes data

● Supports PSA processes of different chip original manufacturers

● Complies with the requirements of automotive electronics industry specifications

UFS PROGRAMMER

Gang-8 Bottom board AG01

● Acroview's innovative Gang-8 expansion baseboard AG01 is used in conjunction with the AP8000.

● It supports the entire series of programmable devices.

● Supports hot swapping

● Supports automatic detection

UFS PROGRAMMER

One-to-eight Baseboard AG02

● The AG02 expansion baseboard is specifically designed for programming large-capacity memory chips.

● Supports the production and copying of eMMC/SD/NAND master chips.

● Combined with the master chip analysis function, it significantly boosts programming efficiency.

● Supports hot swapping.

● Supports automatic detection.

UFS PROGRAMMER

ISP Programming Adapter Board

● Supports programming sockets for various IC packages.

● Well-designed Socket Board boosts signal stability and programming yield.

● Each AP8000 supports up to 8 sockets.

UFS PROGRAMMER

Automatic Machine Socket Cap

● Innovative CAP cover design, with one CAP cover for each socket.

● Improves the even force-bearing of the programming socket and extends its service life.

UFS PROGRAMMER

Manual burner labor-saving fixture

● Manually open and close the burner, lightweight and effortless

● Improve production efficiency

● The burner base is evenly stressed, enhancing its service life
